XGY-V7 Milling Head

Country of Origin:

Detail Specifications

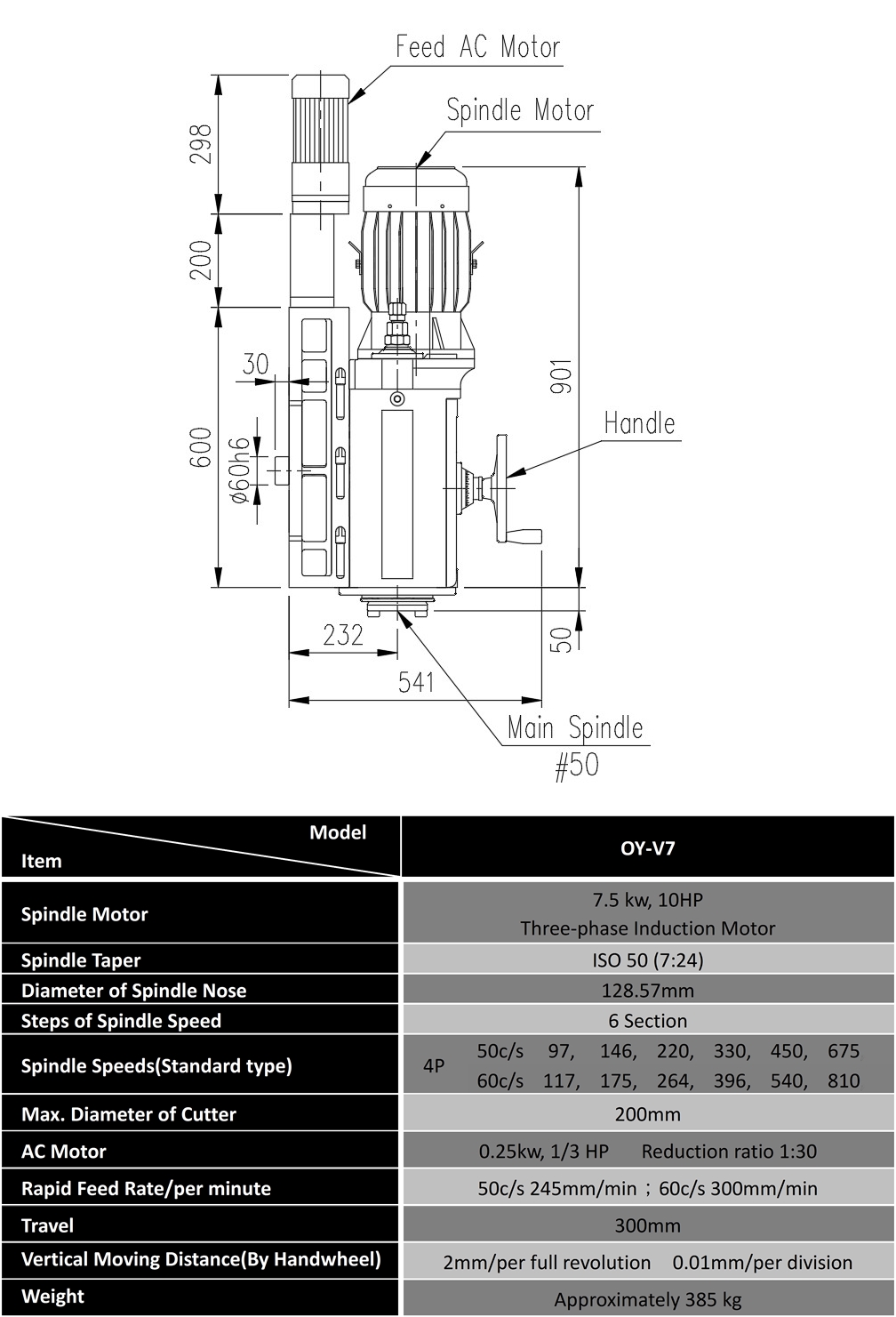

OY-V7 Milling Head
Designed for single-column and double-column milling machines, and dedicated machinery
1. This milling head is one of our conventional milling head series, and most suitable for
installing to gantry milling machine, single arm milling machine and special purpose
machine as heavy duty cutting.
2. Its inner wall is thicker, and its main body is rigid.
3. The spindle of the milling head is made of Japan material and NSK bearings. The inner
driving system has passed strict quality inspection, and is sturdy and durable. It functions
very well.
4. Travel: 300mm
5. It can work together with our Φ250 right angle milling head (angle head) to proceed with
five-side milling.
